8TEN Spindle Pulley for MTD Cub Cadet MMZ-1848 M48 M50 Tank Recon 48 60 GT2550 GT2554 956-1209 756-3096

Product description

810-CPL2235Y

About 8TEN

8TEN Parts provides lawn & garden replacement parts. Some of the 8TEN Parts product categories include blades, spindles, pulleys, idlers, and chainsaw chains. 8TEN Parts are here for when you need them the most.

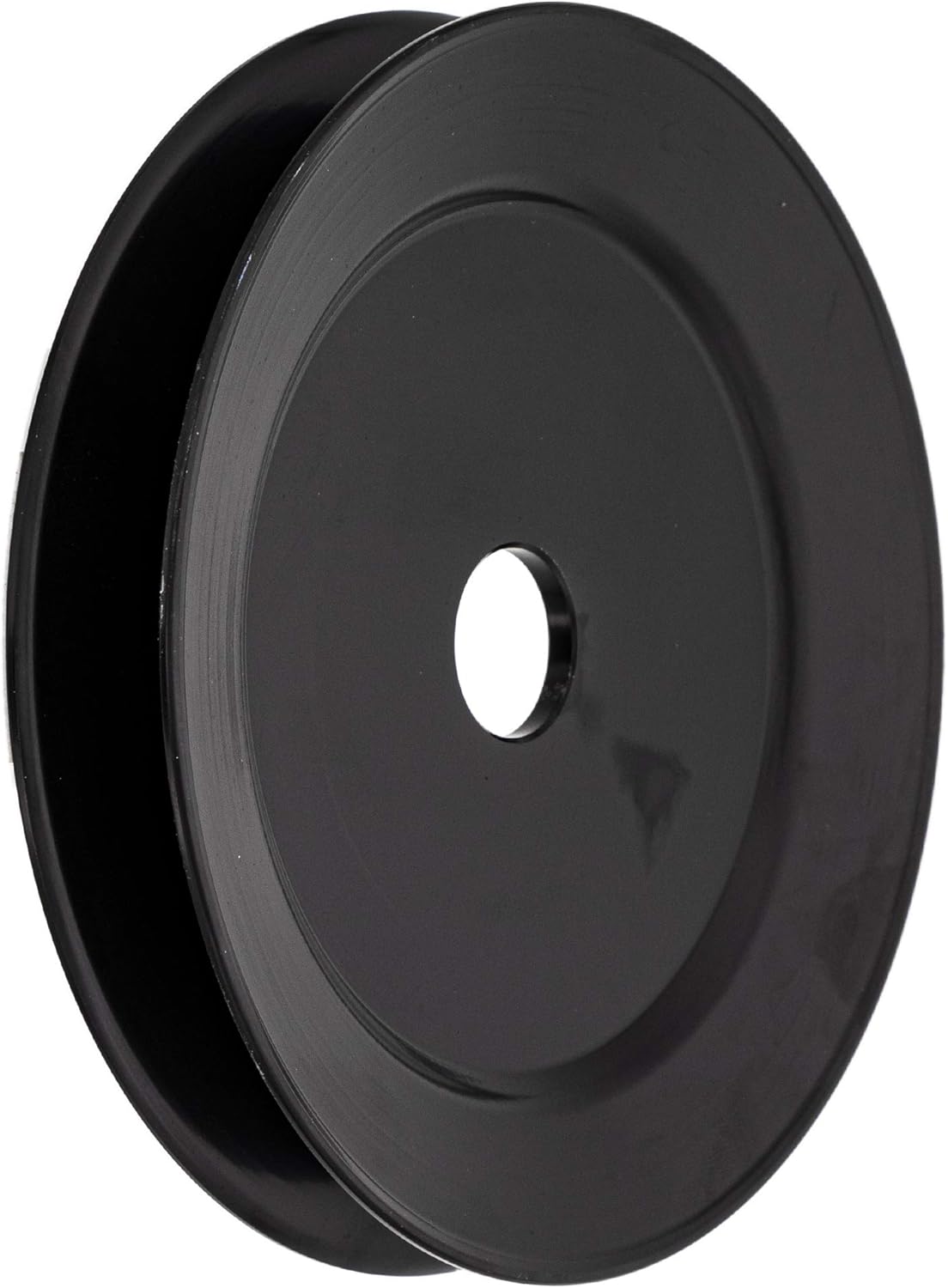

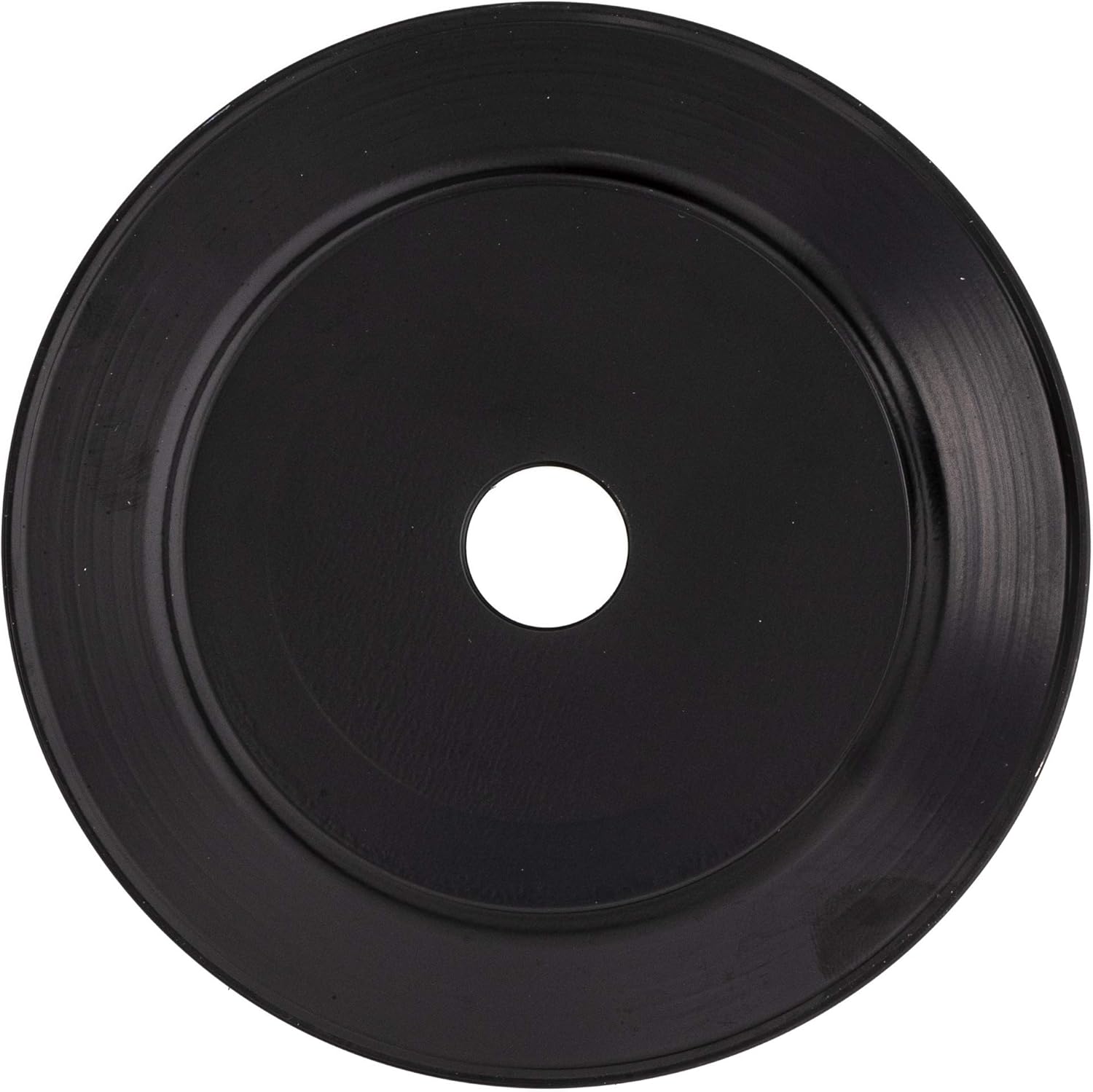

8TEN Idler Pulley Part Number 810-CPL2235Y

Includes: 8TEN Idler PulleyCompatible with the following brands: MTD, RotaryCompatible with the following models: MMZ-1848 M48 M50 GT2550 Z ForceReplaces for the following OEM MPN’s: 756-04129,956-1209,756-3096,283
Inner Diameter: 3/4 inch Outer Diameter: 5 inches Height: 7/8 inch

Idler Pulley Dimension Terms

Width: The distance from side to side of the pulley, the area where the belt is foundInside Diameter: The distance across the center hole, This dimension should match the diameter of your shaft or boltOutside Diameter: The distance across the circle of the product, from outside edge to outside edge. For flat idler pulleys, this will include the flanges

Back Side Offset: The width from the center of the pulley to the backside edge of the hub or bore adapterFrontside Offset: The width from the center of the pulley to the front edge of the hub, bearing, or bore adapterThroughbore: Length of the bore, from one edge to the other. The Frontside Offset and Backside offset together equal the length of the throughbore

Bearing ID: The inside diameter of the bearing used in the pulleyFlanges: These are protrusions out from the center of a pulley, designed to keep a belt from slipping offStickout: The distance from the edge of the pulley’s flange to the edge of the bore adapter or hub.

8TEN Idler Pulley Uses

Redirect the beltKeep the belt in placePress against the belt to cause the belt to engageThe goal of an 8TEN idler pulley is to move power or items from one place to another8TEN idler pulleys move power by having a drive pulley attached to a motor, that will cause another pulley, the drive pulley, to spinIdler pulleys are pulleys in a system that are not connected directly to the power source, and cannot increase speed or torque

Compatible with OEM Part Numbers MTD, Cub Cadet 956-1209, 756-3096
Compatible with Models MTD MMZ-1848, 53AB555M195
Compatible with Cub Cadet M48, M50, Recon 48, 60, Tank 48, 60, Z Force
Compatible with Cub Cadet 291,295, 5252E, 614, 811, FMZ50
Compatible with Cub Cadet GT1554, GT2050, GT2550, GT2554, GTLT1024, LT1050, SLT1554, GT2523
